Material: Carbon Steel C1022A
Head: Double/ Single Countersunk Head
Point: Self-tapping/ Sharp/Needle Point
Thread: Coarse
Drive: Pozi/Phillips/Square
Finish: White Zinc/ White Galvanized

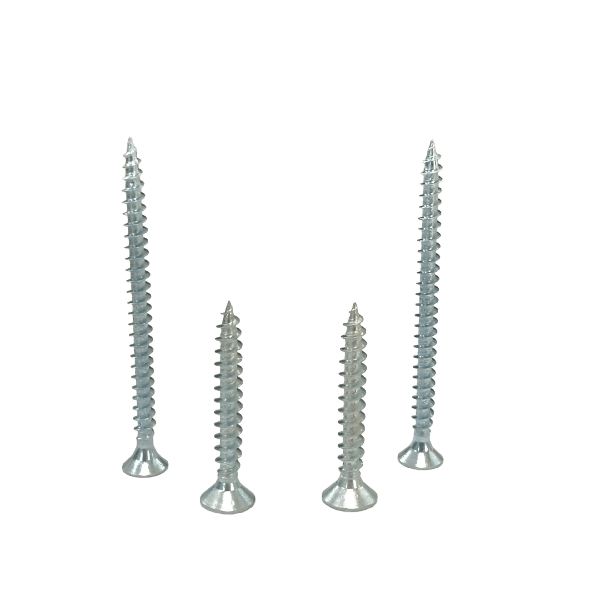

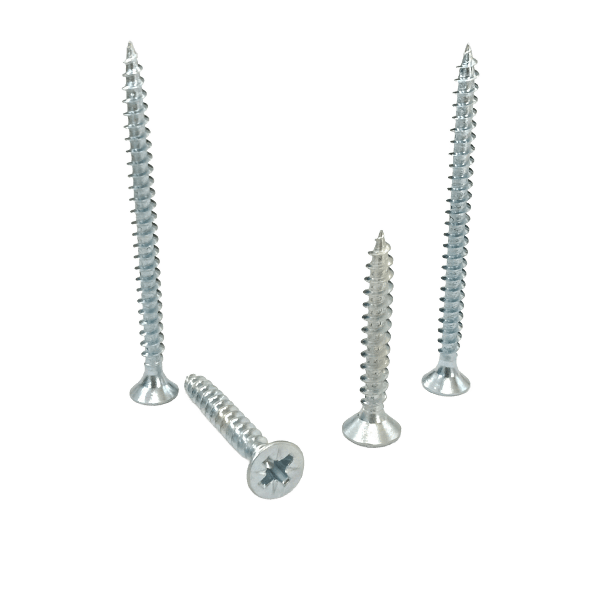

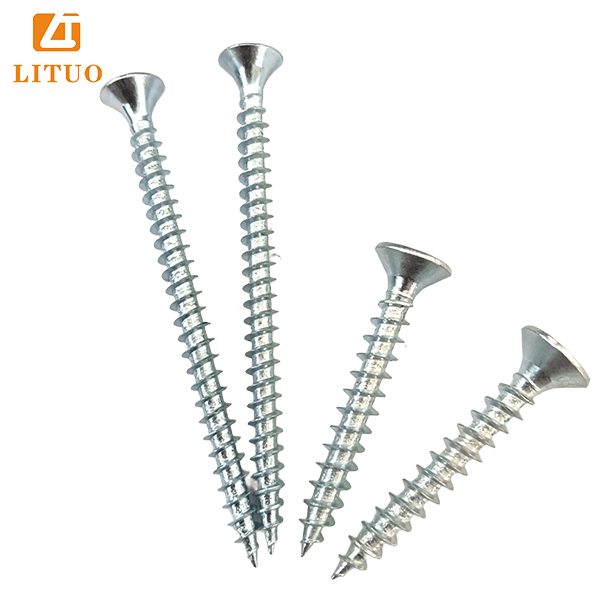

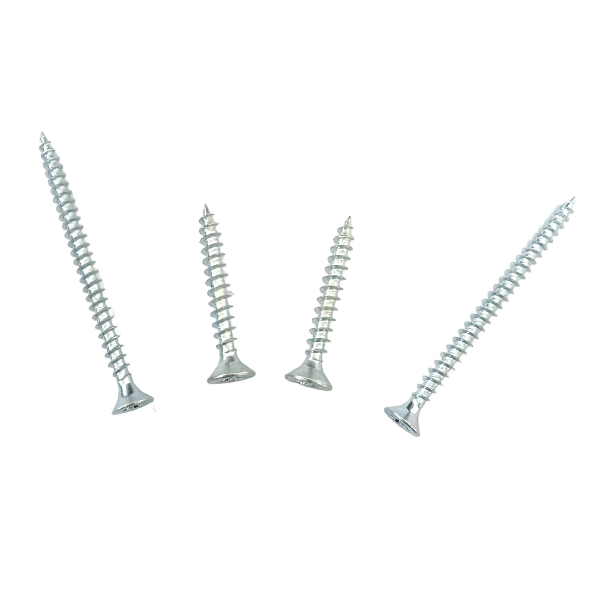

Product Overview
Our Chipboard Screws are specifically designed to deliver maximum holding power and minimal stripout in chipboard, particle board, and other soft timber applications. The unique combination of a coarse thread and a fine shank ensures fast, easy driving while providing an exceptionally strong grip that resists pull-out under stress.
Advanced Manufacturing & Process Advantages

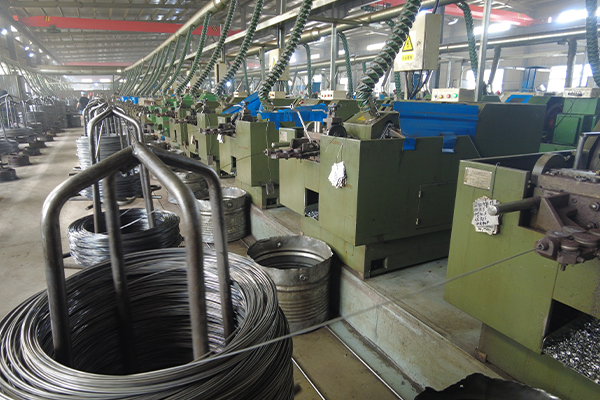

Cold Forging Technology: Our screws are formed using high-precision cold forging machines. This process aligns the metal grain structure, resulting in superior tensile strength and durability compared to screws made by cutting or milling.
Automated Thread Rolling: The coarse, sharp threads are not cut but are rolled under tremendous pressure. This work-hardens the steel in the threads, significantly enhancing their strength and resistance to wear and stripping.
Electrolytic Zinc Plating: We utilize an electrolytic plating process that applies a uniform, consistent zinc layer. This provides excellent corrosion resistance, protecting the screws from rust and ensuring a long service life, even in non-humid interior environments.
Quality Control: Every production batch undergoes inspection to guarantee consistent head geometry, shank diameter, and thread profile. This ensures screw meet the specified dimensional standards and performs identically
Expanded Key Features & Benefit
Countersunk Self-Embedding Head:
The precise head angle is designed to sit perfectly flush with or slightly below the material surface, creating a smooth, professional finish without snagging.
The "self-embedding" feature allows the head to cleanly countersink itself into the material without causing surface splintering or breakout.
Coarse Thread & Fine Shank Design:
Coarse Thread: Bites aggressively into soft, low-density materials, providing a rapid drive and exceptional pull-out resistance.
Fine Shank: Reduces friction between the screw and the material during driving, allowing for easier installation and preventing the screw from "binding." This combination drastically reduces the risk of driver bit cam-out and head stripout.
Zinc Plating for Durability:
The zinc coating not only fights corrosion but also provides a smooth, hard surface that reduces driving torque and enhances the screw's compatibility with powered drivers.
Sharp Self-Tapping Point:
The specially designed sharp point eliminates the need for pre-drilling in most applications, saving significant time and labor costs on the job site.
Our Factory's Value-Add
OEM & Customization Available: We can produce screws to your exact specifications, including different sizes, various drive types (Phillips, Pozi, Torx), and custom packaging.

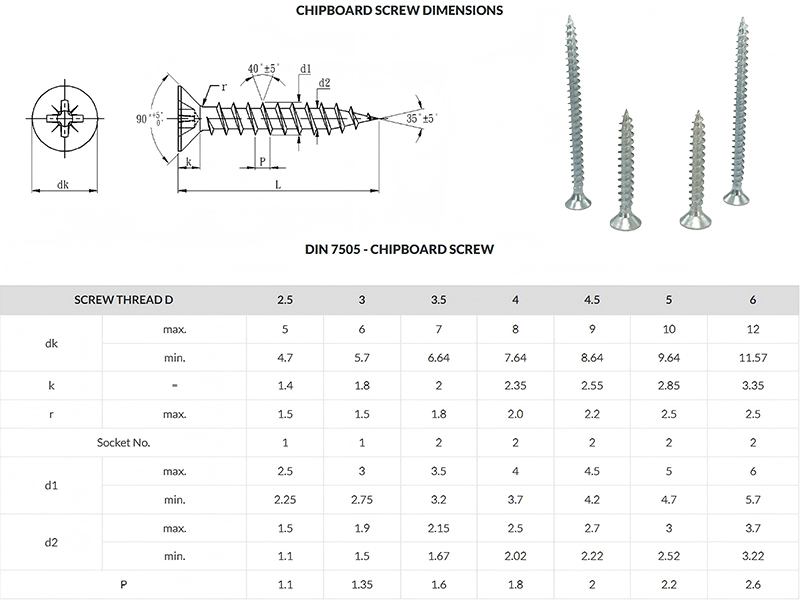

Proven Export Quality: Our screws are trusted by distributors and wholesalers across the world with international standards like DIN 7505.
Competitive Pricing & Reliable Supply: As a integrated manufacturer, we control the entire production process, allowing us to offer competitive prices and guarantee stable supply for both large and small orders.
We are confident that our Chipboard Screws will provide the reliable performance your projects demand.
Contact us to request free samples and test the quality for yourself.
