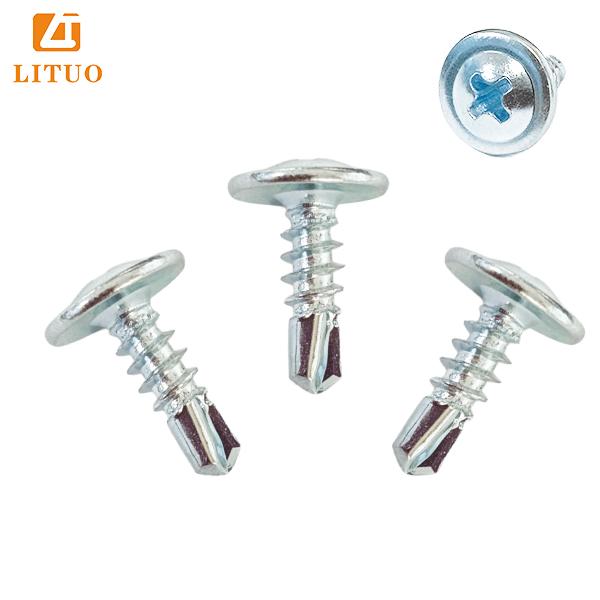

1.Head type of screws: Truss Head/Wafer Head/Big Flat Round Head
2. Slot of screw: Phillips, Cross recessed or according to requirement
3. Drive of screw: Phillips, Cross

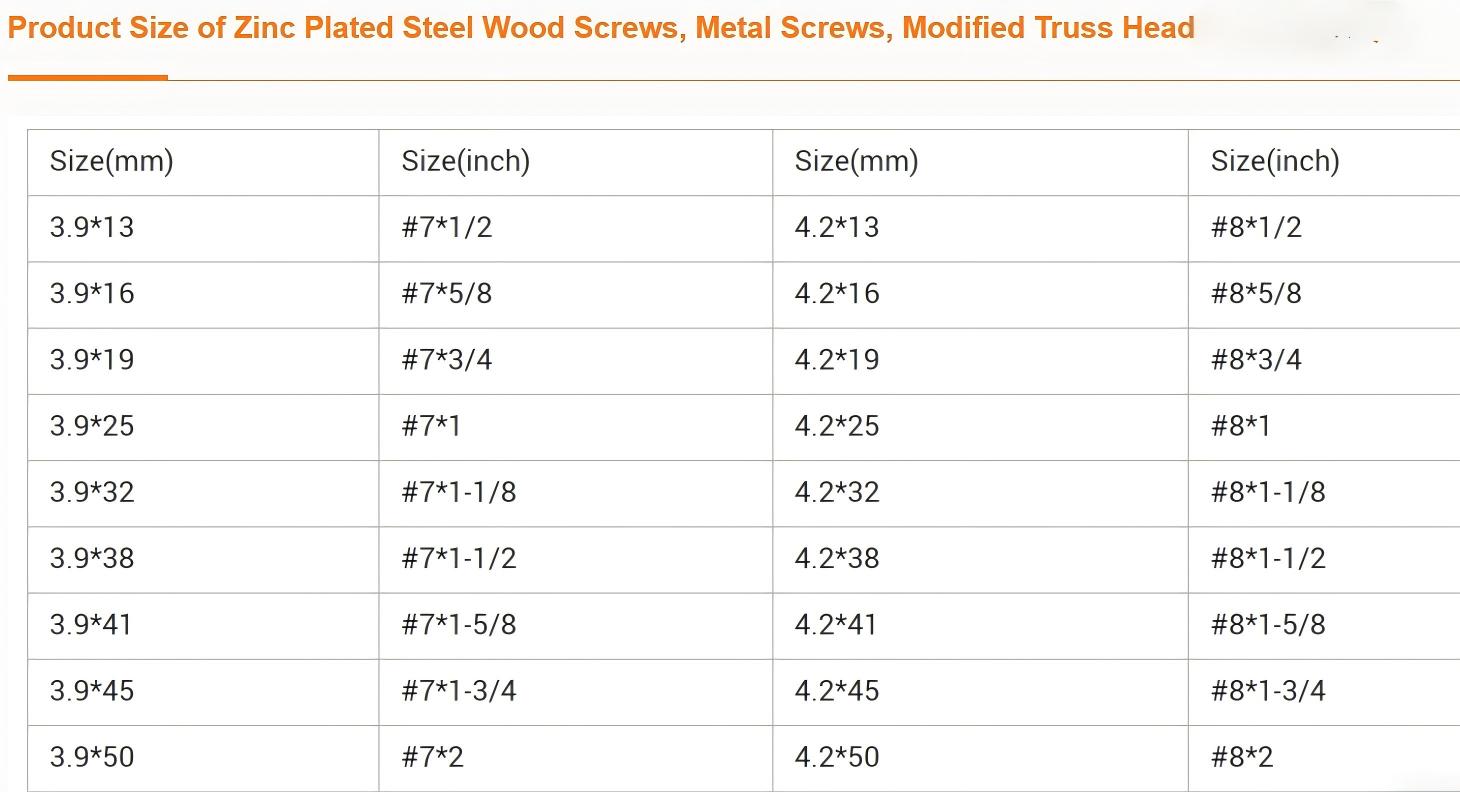

4.Length: 13~100
5.Diameter: 4.2
6.Material: C1022A
7. Surface of screw: Zinc plated/ Phosphated/Nickle
8.Packing: Box with Master Carton / Bulk Carton/Bulk Sack/Custom Packing
Packaging & Shipping
1. 500-1000pcs/box, 8-16boxes/carton
2. Bulk packing: 25kg/carton.
3.Delivery Time: Within 45-60 days after receipt of deposit.
Washer head self-drilling screws are a medium duty metal to metal screw, with a large 'washer' head which has a flat finish on the underside.
This makes it ideal to for fixing thin sheet material, as the wafer head provides both excellent clamping and a sleek low profile finish. Truss head screws have an medium duty zinc CR3 plating to provide rust resistance.
PH2 Philips drive washer head
#8 x 5/8'' Imperial size
Zinc CR-3 plated
Large head diameter for increased clamping.
Coarse 60 degree self-tapping thread for extreme grip & excellent pull out
we manufacture and supply a wide range of truss head screws in various sizes, materials, and finishes—perfect for B2B bulk orders and professional electrical projects
